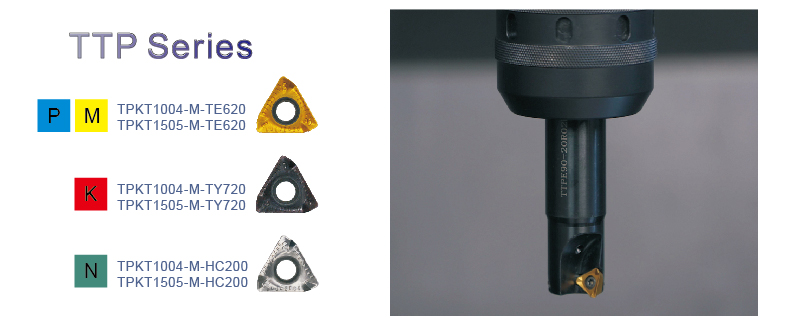

TTP’s economical insert with 3 cutting edges and optimized geometry improves efficiency and productivity with the square shoulder milling cutter.

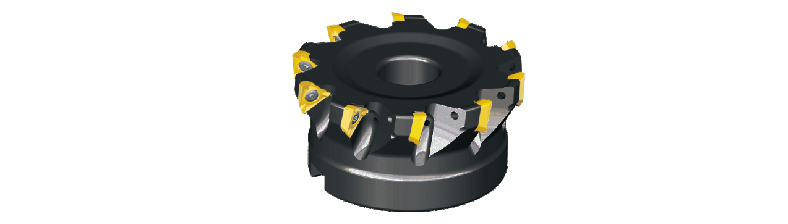

Milling: Bore Type TTPF90 DCX (40-125mm)
Max.ap:7/11mm
Shank Type TTPE90 DCX (16-40mm)
Max.ap:7/11mm

Product features:

1. 3 cutting edges on one insert for highly economical machining.
2. Optimized relief geometry on the positive insert ensures low cutting force and minimal chattering.
3. Helical cutting edges and optimized positioning on cutter provide high wall accuracy and surface quality.
4. Sharp and tough rake geometry reduces fracture of cutting edges.
5. Triangular shape of the insert improves clamping rigidity and reliability.
6. Insert sizes in 10,15 mm cover small to large depths of cut.
