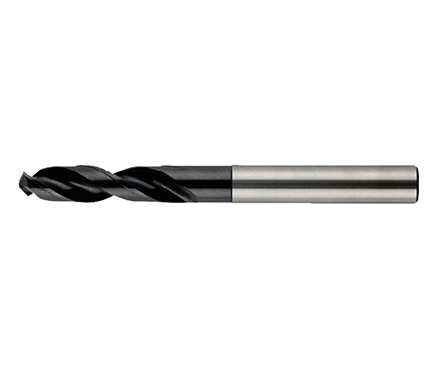

TDPM Series

for Alloy steel,die steel（≤HRC40）,stainless steel，cast iron Diameter:D0.5-D13mm

Features

Tap type

LEARN MORE

Srandard cutting conditions

Processing material	P						M		K
	Structural Steel Carbon Steel		Alloy steel Quenched and tempered Steel		Die steel Pre-hardening steel		Stainless Steel		Cast iron
	-200HB		20-30HRC		30-40HRC		SUS304/316		FC250/FCD400
DIM.mm	Speed r/min	Feed r/min	Speed r/min	Feed r/min	Speed r/min	Feed r/min	Speed r/min	Feed r/min	Speed r/min	Feed r/min
0.5	16000	240	13000	150	9500	80	5100	50	20000	300
1	9500	280	8000	190	6400	140	3500	65	12000	400
2	5700	360	4600	240	3200	160	1900	80	6300	490
3	4200	430	3400	290	2100	165	1300	85	4700	600
5	2500	430	2000	290	1250	165	760	80	2800	600
8	1600	370	1300	250	800	150	480	75	1800	530
10	1300	340	1000	230	650	140	380	73	1400	460
12	1100	310	850	210	530	130	320	70	1200	430
