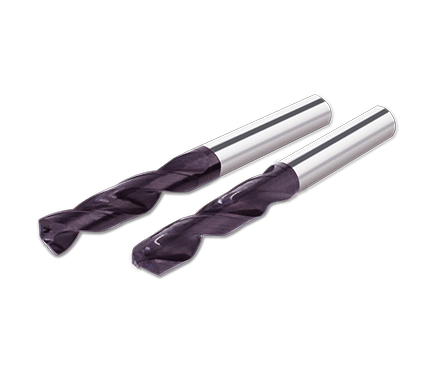

TT Series-Carbide Drills-TOTIME

Features

● Curved cutting edge design disperse the cutting force.it is not easy to cause chipping and wear due to stress concentration,and facilitate chip removal.

● Nano composite Balzers-PT coating .superior wear resistance,longer tool life.

● Specially suitable for hole machining of carbon steel,alloy steel,stainless steel and other materials.

● Deep holedrill series L/D=12-30.

Drill bodies

TTW

Diameter:D3-D20mm
L/D: 3/5/7
Without coolant hole

LEARN MORE

TTS

Diameter:D3-D20mm
L/D: 3/5/7/12/16/20/25/30
With coolant hole

LEARN MORE

Srandard cutting conditions

TTW Series 3D/5D (External coolant)

ISO	Workpiece Material	Brinell hardness (HB)	Feed: f(mm/rev)										Ve(m/min)
ISO	Workpiece Material	Brinell hardness (HB)	‌Φ3	‌Φ4	‌Φ6	‌Φ8	‌Φ10	‌Φ12	‌Φ14	‌Φ16	‌Φ18	‌Φ20	‌Φ3~‌Φ20
P	Low carbon steels(C<0.3) C15E4,E275A,E355D,etc	~ 180	0.12	0.14	0.14	0.22	0.26	0.28	0.30	0.32	0.34	0.36	70.00
	Carbon steels (C>0.3) C45, C55, etc.	180 ~ 300	0.12	0.14	0.14	0.22	0.26	0.28	0.30	0.32	0.34	0.36	60.00
	High alloy steels 42CrMo4, etc.	250 ~ 350	0.11	0.13	0.13	0.20	0.24	0.26	0.28	0.30	0.32	0.34	50.00
M	Stainless steels X5CrNi18-9, etc.	~ 200	0.11	0.13	0.13	0.20	0.24	0.26	0.28	0.30	0.32	0.34	30.00
K	Grey cast irons 250, etc.	~ 200	0.12	0.13	0.13	0.22	0.26	0.28	0.30	0.32	0.34	0.36	40.00
K	Ductile cast irons 450-10S, etc.	~ 300	0.11	0.12	0.12	0.20	0.24	0.26	0.28	0.30	0.32	0.34	35.00
N	Aluminium alloys AISi11Cu3, etc.	-	-	-	-	-	-	-	-	-	-	-	-

TTS Series 3D/5D (Internal Coolant)

ISO	Workpiece Material	Brinell hardness (HB)	Feed: f(mm/rev)										Ve(m/min)
ISO	Workpiece Material	Brinell hardness (HB)	‌Φ3	‌Φ4	‌Φ6	‌Φ8	‌Φ10	‌Φ12	‌Φ14	‌Φ16	‌Φ18	‌Φ20	‌Φ3~‌Φ20
P	Low carbon steels(C<0.3) C15E4,E275A,E355D,etc	~ 180	0.12	0.14	0.18	0.22	0.26	0.28	0.30	0.32	0.34	0.36	90.00
	Carbon steels (C>0.3) C45, C55, etc.	180 ~ 300	0.12	0.14	0.18	0.22	0.26	0.28	0.30	0.32	0.34	0.36	80.00
	High alloy steels 42CrMo4, etc.	250 ~ 350	0.11	0.13	0.16	0.20	0.24	0.26	0.28	0.30	0.32	0.34	75.00
M	Stainless steels X5CrNi18-9, etc.	~ 200	0.11	0.13	0.16	0.20	0.24	0.26	0.28	0.30	0.32	0.34	50.00
K	Grey cast irons 250, etc.	~ 200	0.12	0.13	0.18	0.22	0.26	0.28	0.30	0.32	0.34	0.36	50.00
K	Ductile cast irons 450-10S, etc.	~ 300	0.11	0.12	0.16	0.20	0.24	0.26	0.28	0.30	0.32	0.34	45.00
N	Aluminium alloys AISi11Cu3, etc.	-	0.10	0.20	0.22	0.26	0.30	0.34	0.36	0.38	0.40	0.42	180.00

TTW Series 7D (External Coolant)

ISO	Workpiece Material	Brinell hardness (HB)	Feed: f(mm/rev)									Ve(m/min)
ISO	Workpiece Material	Brinell hardness (HB)	‌Φ4.5	‌Φ6	‌Φ8	‌Φ10	‌Φ12	‌Φ14	‌Φ16	‌Φ18	‌Φ20	‌Φ3~‌Φ20
P	Low carbon steels(C<0.3) C15E4,E275A,E355D,etc	~ 180	0.14	0.14	0.22	0.26	0.28	0.30	0.32	0.34	0.36	63.00
	Carbon steels (C>0.3) C45, C55, etc.	180 ~ 300	0.14	0.14	0.22	0.26	0.28	0.30	0.32	0.34	0.36	54.00
	High alloy steels 42CrMo4, etc.	250 ~ 350	0.13	0.13	0.20	0.24	0.26	0.28	0.30	0.32	0.34	45.00
M	Stainless steels X5CrNi18-9, etc.	~ 200	0.13	0.13	0.20	0.24	0.26	0.28	0.30	0.32	0.34	27.00
K	Grey cast irons 250, etc.	~ 200	0.13	0.13	0.22	0.26	0.28	0.30	0.32	0.34	0.36	36.00
K	Ductile cast irons 450-10S, etc.	~ 300	0.12	0.12	0.20	0.24	0.26	0.28	0.30	0.32	0.34	30.00
N	Aluminium alloys AISi11Cu3, etc.	-	-	-	-	-	-	-	-	-	-	-

TTS Series 7D (Internal Coolant)

ISO	Workpiece Material	Brinell hardness (HB)	Feed: f(mm/rev)									Ve(m/min)
ISO	Workpiece Material	Brinell hardness (HB)	‌Φ4.5	‌Φ6	‌Φ8	‌Φ10	‌Φ12	‌Φ14	‌Φ16	‌Φ18	‌Φ20	‌Φ3~‌Φ20
P	Low carbon steels(C<0.3) C15E4,E275A,E355D,etc	~ 180	0.14	0.18	0.22	0.26	0.28	0.30	0.32	0.34	0.36	75.00
	Carbon steels (C>0.3) C45, C55, etc.	180 ~ 300	0.14	0.18	0.22	0.26	0.28	0.30	0.32	0.34	0.36	66.00
	High alloy steels 42CrMo4, etc.	250 ~ 350	0.13	0.16	0.20	0.24	0.26	0.28	0.30	0.32	0.34	60.00
M	Stainless steels X5CrNi18-9, etc.	~ 200	0.13	0.16	0.20	0.24	0.26	0.28	0.30	0.32	0.34	40.00
K	Grey cast irons 250, etc.	~ 200	0.13	0.18	0.22	0.26	0.28	0.30	0.32	0.34	0.36	40.00
K	Ductile cast irons 450-10S, etc.	~ 300	0.12	0.16	0.20	0.24	0.26	0.28	0.30	0.32	0.34	38.00
N	Aluminium alloys AISi11Cu3, etc.	-	0.20	0.22	0.26	0.30	0.34	0.36	0.38	0.40	0.42	150.00

TTS Series12D/16D/20D/25D/30D(Internal coolant)

ISO	Workpiece Material	Brinell hardness (HB)	Feed: f(mm/rev)						Ve(m/min)
ISO	Workpiece Material	Brinell hardness (HB)	‌Φ3	‌Φ4	‌Φ6	‌Φ8	‌Φ10	Φ12	Φ3~Φ12
P	Low carbon steels(C<0.3) C15E4,E275A,E355D,etc	~ 180	0.12	0.14	0.18	0.22	0.26	0.28	81.00
	Carbon steels (C>0.3) C45, C55, etc.	180 ~ 300	0.12	0.14	0.18	0.22	0.26	0.28	68.00
	High alloy steels 42CrMo4, etc.	250 ~ 350	0.11	0.13	0.16	0.20	0.24	0.26	58.00
M	Stainless steels X5CrNi18-9, etc.	~ 200	0.11	0.13	0.16	0.20	0.24	0.26	36.00
K	Grey cast irons 250, etc.	~ 200	0.12	0.13	0.18	0.22	0.26	0.28	45.00
K	Ductile cast irons 450-10S, etc.	~ 300	0.11	0.12	0.16	0.20	0.24	0.26	40.00
N	Aluminium alloys AISi11Cu3, etc.	-	0.12	0.14	0.20	0.24	0.28	0.32	135.00
