> Products > Milling > Indexable Milling Cutters > Face Milling

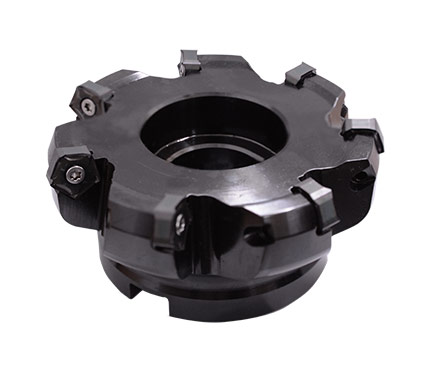

MFPN Series
66°Face mill with high economical and 10 cutting edge Insert for higher productivity
Features
Features

● Stability and cost efficiency with 10-edge pentagonal inserts.

● Low cutting forces and reduced chattering with a helical cutting edge design.

● Tough and reliable dual cutting edge design.

Inserts&Grade
Inserts&Grade
PNMU0905-TG
P
M
K
Grade: TY602
APMX: 5mm

LEARN MORE
PNMU0905-SG
M
S
Grade: TG4035
APMX: 5mm

LEARN MORE
PNMU0905-UG
P
K
Grade: TG4025
APMX: 5mm

LEARN MORE
Cutting bodies
Cutting bodies
MFPN
Diameter:D50-D315mm
APMX: 5mm

LEARN MORE
Standard cutting conditions
Standard cutting conditions
ISO Workpiece material Hardness Grade Cutting Speed Feed
Vc (m/min) fz(mm/t)
P Carbon Steel ≤HB300 TG4025/TY602 120-250 0.10-0.30
Alloy Steel HB200-300 100-220 0.10-0.30
Mold Steel ≤HB300 80-180 0.10-0.25
M Stainless Steel ≤HB200 TG4035/TY602 100-200 0.06-0.20
K Gray Cast lron HB150-250 TY602 120-260 0.06-0.20
Ductile Cast lron HB150-250 TY602 100-200 0.06-0.15
