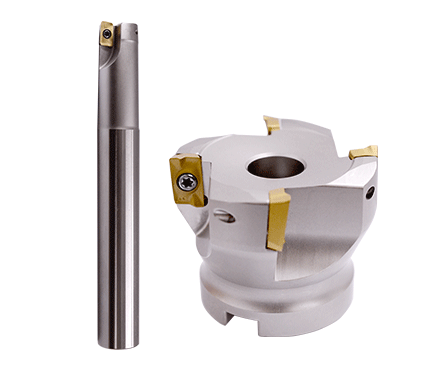

EAP Series

Right angle shoulder milling cutter bar

Features

Features

●Suitable for 11° positive angleinsert tip.

●Suitable for various types of inserts, applicable to aluminum and steel milling.

●Screw locking, large space for chipping, excellent chip removal performance.

●Cutting smoothly, low resistance.

●Customized aluminium milling cutter is available.

Inserts&Grade

Inserts&Grade

APMT1135/1604-M2

Grade: TI960(P、M、K)

Grade: TH910(H、S)

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D10-D35mm

LEARN MORE

Diameter:D50-D200mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz（mm/t）
P	Low Carbon Steel	≤HB180	TI960	120-220	0.15-0.30
	High Carbon and Alloy Steel	HB180-280		70-150	0.15-0.30
	Alloy Steel	HB280-350		70-150	0.15-0.30
M	Stainless Steel	≤HB200		120-200	0.10-0.25
K	Gray Cast Iron	HB150-250		140-220	0.15-0.30
K	Ductile Cast Iron	HB150-250		150-240	0.15-0.30
H	Hardened Material	≤HRC50	TH910	40-80	0.10-0.30
