CBN Series

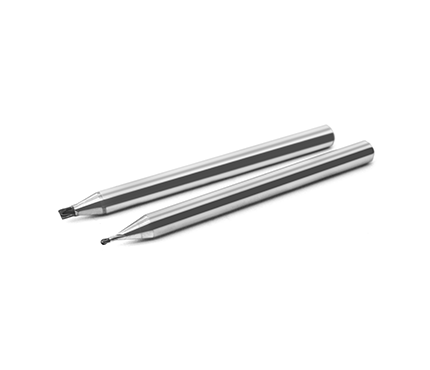

CBN End Mill for High Hardness Materials (HRC50 to 70)
Features
Features

●Maching high hardness materials HRC50 to HRC70 into finish process for long times.



●High speed cutting with 20,000rpm and over 20,000rpm of tool and supplying air mist recommended.



●Good cutting ability due to negative rake angle.

Shape type
Shape type
CN2CR Corner radius
Diameter:0.2-3mm
Nunber of flutes: 2

LEARN MORE
CP2CR Corner radius
High-precision
Diameter:0.2-3mm
Nunber of flutes: 2

LEARN MORE
CN2BE Ball nose
Diameter:0.2-3mm
Nunber of flutes: 2

LEARN MORE
CP2BE Ball nose
High-precision
Diameter:0.2-3mm
Nunber of flutes: 2

LEARN MORE

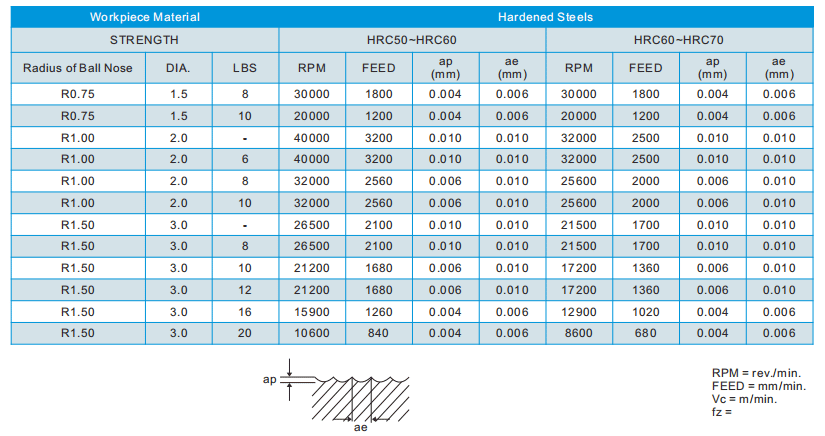

CN2BE/CP2BE Series
CN2BE/CP2BE Series

CBN 2 FLUTE BALL NOSE

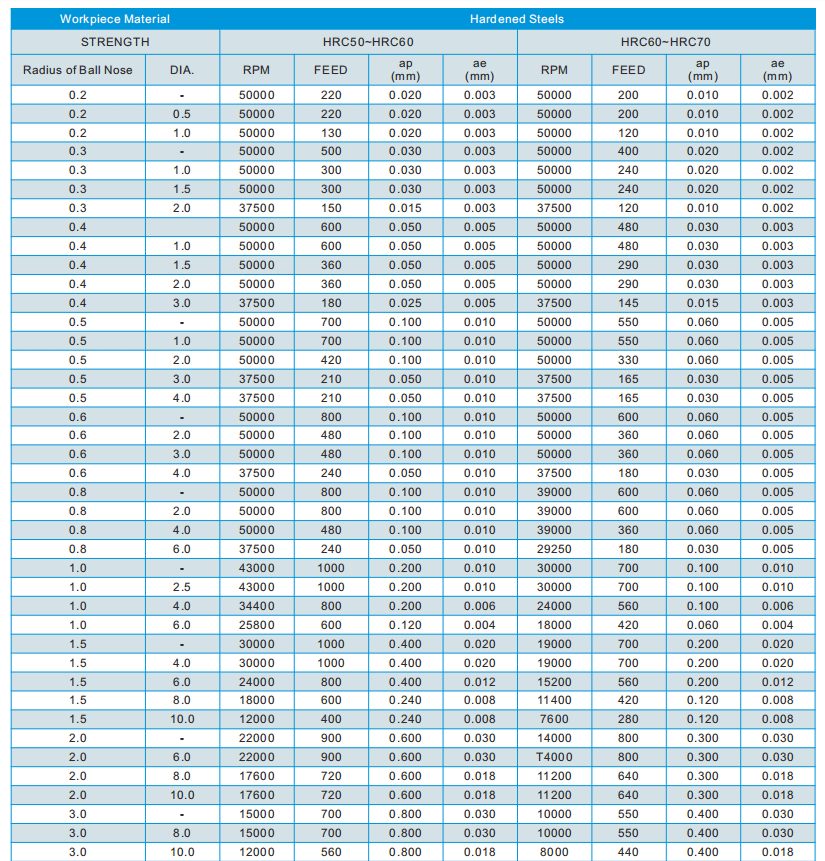

CN2CR/CP2CR Series
CN2CR/CP2CR Series

CBN 2 FLUTE BALL NOSE
