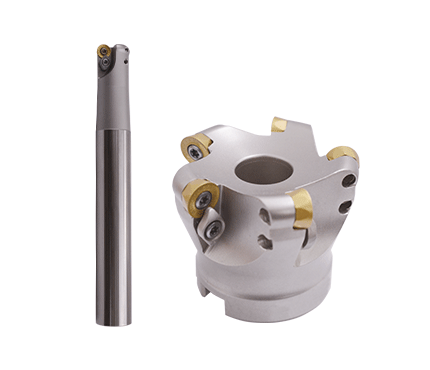

EMR Series

Round dowel milling cutter bar

Features

Features

●Suitable for 11°positive angle insert tip

●Working with very economical insert

●Large space for chipping, excellent chip removal performance

●Taper design with high rigidity

●Customized aluminium milling cutter is available

Inserts&Grade

Inserts&Grade

Grade: TI960(P、M、K)

Grade: TH910(H、S）

LEARN MORE

Grade: TI960(P、M、K)

Grade: TH910(H、S）

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D12-D35mm
APMX: 4/5/6mm

LEARN MORE

Diameter:D50-D125mm
APMX: 5/6mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

EMR-C

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz(mm/t)
P	Low Carbon Steel	≤HB180	TI960	120-220	0.15-0.30
	High Carbon and Alloy Steel	HB180-280		70-150	0.15-0.30
	Alloy Steel	HB280-350		70-150	0.15-0.30
M	Stainless Steel	≤HB200		120-200	0.10-0.25
K	Gray Cast Iron	HB150-250		140-220	0.15-0.30
K	Ductile Cast Iron	HB150-250		150-240	0.15-0.30
H	Hardened Material	≤HRC50	TH910	40-80	0.22-0.40

EMR-R

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz(mm/t)
P	Low Carbon Steel	≤HB180	TI960	120-220	0.10-0.35
	High Carbon and Alloy Steel	HB180-280		70-150	0.10-0.35
	Alloy Steel	HB280-350		70-150	0.10-0.35
M	Stainless Steel	≤HB200		120-200	0.10-0.30
K	Gray Cast Iron	HB150-250		140-220	0.15-0.30
K	Ductile Cast Iron	HB150-250		150-240	0.15-0.30
H	Hardened Material	≤HRC50	TH910	40-80	0.10-0.30
