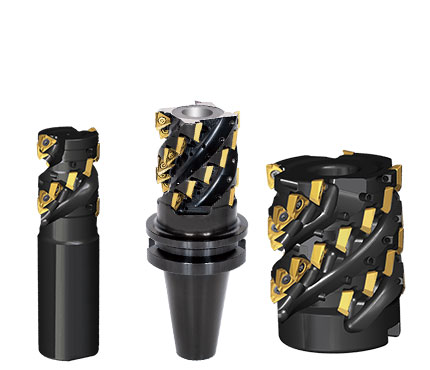

TTP Series

Economical insert with 3 cutting edges and optimized geometry improves efficiency and productivity

Features

Features

●3 cutting edges on one insert for highly economical machining.

●Optimized relief geometry on the positive insert ensures low cutting force and minimal chattering.

●Helical cutting edaes and optimized positioning on cutter provide hiah wall accuracy and surface auality.

●Sharp and tough rake geometry reduces fracture of cutting edges.

●Triangular shape of the insert improves clamping rigidity and reliability.

●Insert sizes in 10, 15 mm cover small to large depths of cut.

Inserts&Grade

Inserts&Grade

Grade: TE620(P/M)

Grade: TY720(K)

Grade: HC200(N)

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D16-D40mm

LEARN MORE

Diameter:D40-D125mm

LEARN MORE

Diameter:D32-D40mm

LEARN MORE

Diameter:D50-D100mm

LEARN MORE

Diameter:D80-D100mm

LEARN MORE

Chamfer milling

Diameter:D2-D20mm

APMX: 3.3-5.9mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz（mm/t）
P	Low Carbon Steel	≤HB180	TE620	180-300	0.05-0.17
	High Carbon and Alloy Steel	HB200-300	TE620	130-210	0.05-0.17
	Alloy SteeL	HB280-350	TE620	100-180	0.05-0.17
M	Stainless Steel	≤HB200	TE620	120-300	0.05-0.17
K	Gray Cast Iron	HB150-250	TY720	100-280	0.05-0.17
K	Ductile Cast Iron	HB150-250	TY720	100-180	0.05-0.17
N	AluminumAlloy ≤12%Si	-	HC200	650-900	0.10-0.50
N	AluminumAlloy >12%Si	-	HC200	250-320	0.10-0.50
