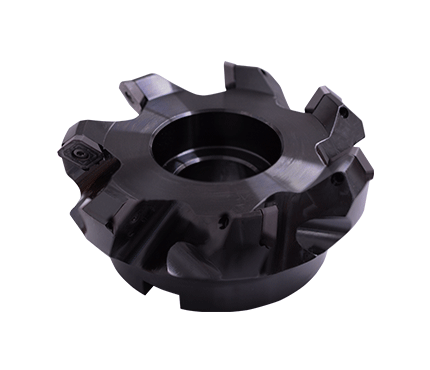

TSE45 Series

45°Face mill with high precision and 4 cuttig edge insert for higher productivty

Features

Features

●4 cutting edges on one insert for highly economical machining.

●Optimized relief geometry on the positive insert ensures low cuting force and minimal chattering.

●Helical cutting edges and optimized positioning on cutter provide high wall accuracy and surface quality.

●Sharp and tough rake geometry reduces fracture of cutting edges.

Inserts&Grade

Inserts&Grade

LEARN MORE

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D50-D160mm
APMX: 6.5mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Grade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Grade	Vc （m/min）	fz（mm/t）
P	Low Carbon Steel	≤HB180	TY602	120-220	0.15-0.30
	High Carbon and Alloy Steel	HB180-280		70-150	0.15-0.30
	Alloy Steel	HB280-350		70-150	0.15-0.30
M	Stainless Steel	≤HB200		120-200	0.15-0.30
K	Gray Cast Iron	HB150-250		140-220	0.15-0.30
K	Ductile Cast Iron	HB150-250		150-240	0.15-0.30
N	Aluminum	—	HC200	300-800	0.07-0.55
