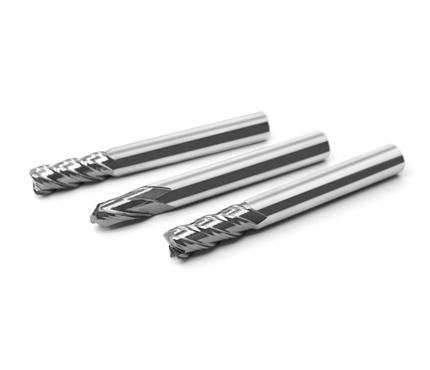

TCM45 Series-End Mills-TOTIME

Features

●Cermet has low density, high wear resistance, excellent chemical stability, good high temperature performance and toughness, suitable for high-speed finishing and semi-finishing cutting.

●In particular, the affinity and friction coefficient between the material and the workpiece material are extremely low, and it is not easy to stick the tools and have built-.upedge, making the machined surface more smooth.

Shape type

Square

Diameter:4-16mm
Nunber of flutes: 4

LEARN MORE

Corner radius

Diameter:4-12mm
Nunber of flutes: 4

LEARN MORE

Ball nose

Diameter:4-12mm
Nunber of flutes: 2

LEARN MORE

Recommended Cutting Conditions

Side Milling

Carbide End Mill Cutter(HRC 48)

4 Flutes Square End Mill / 4 Flutes Comer Radius End Mill For Carbon Steels, Alloy Steels,Cast lron-Side Milling

Workpiece Material		Cutting Depth (mm)	Vc m/min	Tool Diameter (mm)	4	5	6	8	10	12	16	20
P	Carbon Steels Alloy Steels (HRC≤35)	ap≤1.0D	108	Rotation Speed （ min - 1）	8600	6500	5600	4200	3300	2800	2000	1600
	Carbon Steels Alloy Steels (HRC≤35)	ae≤0.1D	108	Feed Speed （mm/min）	516	520	560	588	528	560	528	512
	Alloy Steels Hardened Steels (35-45HRC)	ap≤1.0D	108	Rotation Speed （ min - 1）	8600	5600	4200	3300	2800	5310	2000	1600
	Alloy Steels Hardened Steels (35-45HRC)	ae≤0.1D	108	Feed Speed （mm/min）	516	520	560	588	528	560	528	512
K	Grey Cast Irons Ductile Cast Irons	ap≤1.0D	108	Rotation Speed （ min - 1）	8600	5600	4200	3300	2800	5310	2000	1600
K	Grey Cast Irons Ductile Cast Irons	ae≤0.1D	108	Feed Speed （mm/min）	516	520	560	588	528	560	528	512

Slotting

Carbide End Mill Cutter(HRC 48)

4 Flutes Square End Mill / 4 Flutes Comer Radius End Mill For Carbon Steels, Alloy Steels.Cast lron-Slotting Milling

Workpiece Material		Cutting Depth (mm)	Vc m/min	Tool Diameter (mm)	4	5	6	8	10	12	16	20
P	Carbon Steels Alloy Steels (HRC≤35)	ap≤1.0D	80	Rotation Speed （ min - 1）	6880	5200	4480	3360	2640	2240	1600	1280
	Carbon Steels Alloy Steels (HRC≤35)	ae≤0.1D	80	Feed Speed （mm/min）	310	312	336	353	317	336	317	308
	Alloy Steels Hardened Steels (35-45HRC)	ap≤1.0D	80	Rotation Speed （ min - 1）	6880	4480	3360	2640	2240	4248	1600	1280
	Alloy Steels Hardened Steels (35-45HRC)	ae≤0.1D	80	Feed Speed （mm/min）	310	312	336	353	317	336	317	308
K	Grey Cast Irons Ductile Cast Irons	ap≤1.0D	80	Rotation Speed （ min - 1）	6880	4480	3360	2640	2240	4248	1600	1280
K	Grey Cast Irons Ductile Cast Irons	ae≤0.1D	80	Feed Speed （mm/min）	310	312	336	353	317	336	317	308

Profiling

Carbide End Mill Cutter(HRC 48)

2 Flutes Ball Nose End Mill For Carbon Steels, Alloy Steels,Cast lron-Profilling

Workpiece Material		Cutting Depth (mm)	Vc m/min	Tool Diameter (mm)	4	5	6	8	10	12	16	20
P	Carbon Steels Alloy Steels (HRC≤35)	ap≤0.2D	108	Rotation Speed （ min - 1）	8600	6500	5600	4200	3300	2800	2000	1600
	Carbon Steels Alloy Steels (HRC≤35)	ae≤0.2D	108	Feed Speed （mm/min）	516	520	560	588	528	560	528	512
	Alloy Steels Hardened Steels (35-45HRC)	ap≤0.2D	108	Rotation Speed （ min - 1）	8600	5600	4200	3300	2800	5310	2000	1600
	Alloy Steels Hardened Steels (35-45HRC)	ae≤0.2D	108	Feed Speed （mm/min）	516	520	560	588	528	560	528	512
K	Grey Cast Irons Ductile Cast Irons	ap≤0.2D	108	Rotation Speed （ min - 1）	8600	5600	4200	3300	2800	5310	2000	1600
K	Grey Cast Irons Ductile Cast Irons	ae≤0.2D	108	Feed Speed （mm/min）	516	520	560	588	528	560	528	512
