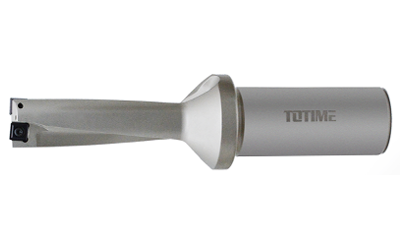

U Drill

Indexable drill with economical 4 cutting edges inser Diameter:D13-D60mm L/D: 2/3/4/5

Features

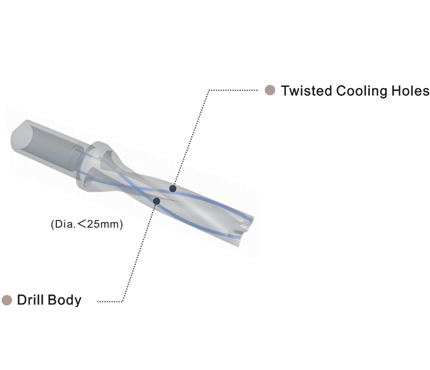

●Twisted Cooling Holes

Twisted coolant hole in the drill body increases coolant flow which improves chip evacuation,resulting in excellent surface finish.

●Drill Body

The use of high rigidity materials in the drill body greatly improves the wear resistance and stability of the drill body.

Inserts & Grades

LEARN MORE

LEARN MORE

LEARN MORE

LEARN MORE

Drill bodies

LEARN MORE

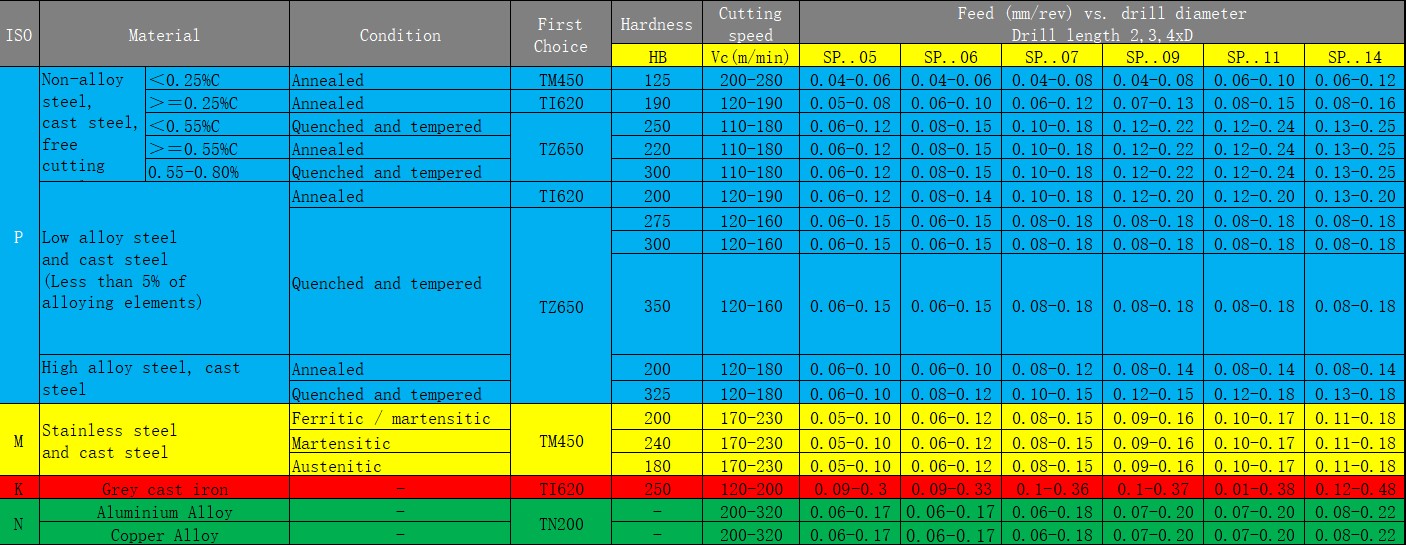

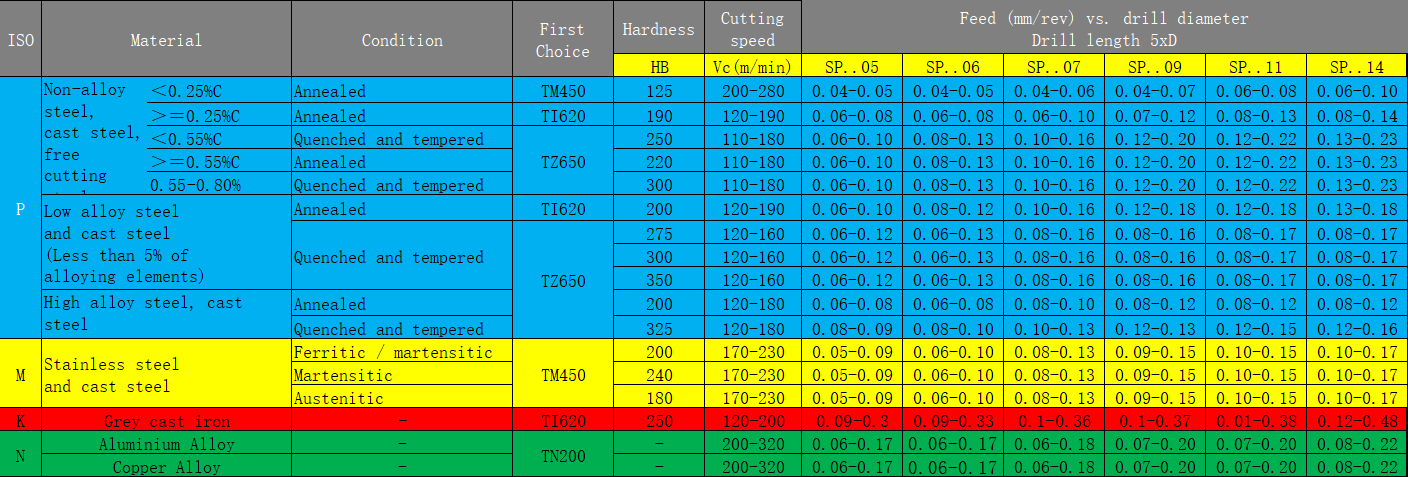

Srandard cutting conditions

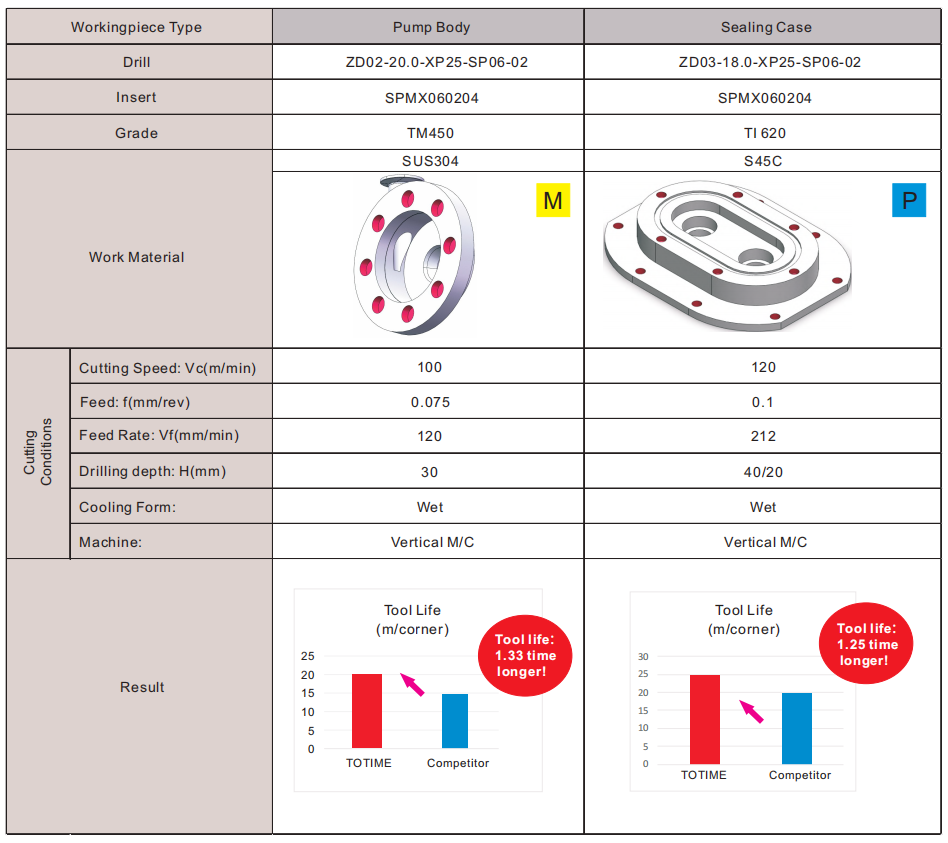

Practical examples
