MRH Series

High-feed milling Diameter:D16-D160mm APMX: 1/2mm

Features

Features

●High feed milling for small diameters and small machining

●Economical inserts with 4 cutting edges.

●Both of standard type and non-interference type are available.

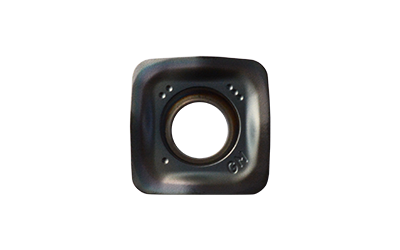

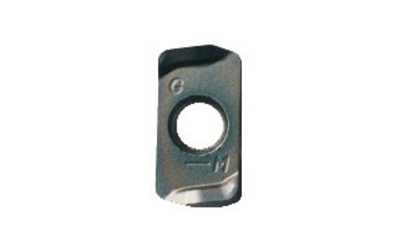

Inserts&Grade

Inserts&Grade

Grade: KX402(P/M)

Grade: KX405(M/S)

LEARN MORE

Grade: KX402(P/M)

Grade: KX405(M/S)

Grade: TY602(P/M)

LEARN MORE

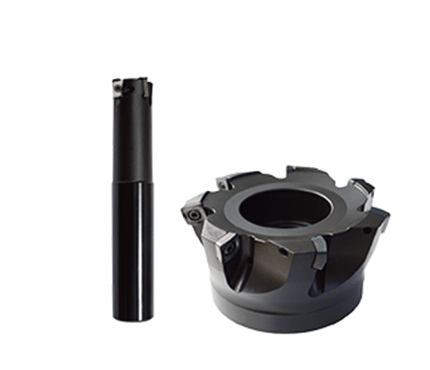

Cutting bodies

Cutting bodies

Diameter:D50-D160mm

LEARN MORE

Diameter:D16-D32mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz（mm/t）
P	Carbon Steel	≤HB300	KX402/TY602	120-250	0.2-1.2
	Alloy Steel	HB200-300		100-220	0.2-1.2
	Mold Steel	＜HRC40		80-180	0.2-0.9
	Mold Steel	HRC40-50		60-130	0.2-0.5
M	Stainless Steel	≤HB200	KX405/TY602	100-200	0.2-0.9
S	Ni-base Heat Resistant Alloy	—	KX405	20-50	0.2-0.6
S	Titanium Alloy	—	KX405	40-80	0.2-0.6

ISO	Workpiece material	Hardness	Crade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Crade	Vc （m/min）	fz（mm/t）
P	Carbon Steel	≤HB300	KX402	120-250	0.5-2.0
	Alloy Steel	HB200-300		100-220	0.5-2.0
	Mold Steel	＜HRC40		80-180	0.2-1.8
	Mold Steel	HRC40-50		60-130	0.2-1.0
M	Stainless Steel	≤HB200	KX405	100-200	0.5-1.2
S	Ni-base Heat Resistant Alloy	—		20-50	0.2-0.8
S	Titanium Alloy	—		40-80	0.2-0.8
