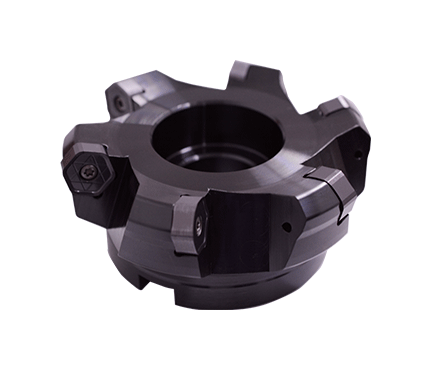

THN45 Series

45°Face mill with high economical and 12 cutting edge Insert for higher productivity Diameter:D50-D160mm APMX: 5mm

Features

Features

●Enhanced cutting edge for cutting stability and high feed machining.

●Acute cutter pocket design and inclined screw clamping enables robust clamping.

●High helical cutting edges for smooth machining double- sided 12 corner insert.

Inserts&Grade

Inserts&Grade

LEARN MORE

LEARN MORE

Cutting bodies

Cutting bodies

Diameter:D50-D160mm
APMX: 5mm

LEARN MORE

Standard cutting conditions

Standard cutting conditions

ISO	Workpiece material	Hardness	Grade	Cutting Speed	Feed
ISO	Workpiece material	Hardness	Grade	Vc （m/min）	fz（mm/t）
P	Low Carbon Steel	≤HB180	TY602	200-300	0.20-0.40
	High Carbon and Alloy Steel	HB180-280		100-250	0.15-0.25
	Alloy Steel	HB280-350		100-180	0.20-0.40
M	Stainless Steel	≤HB200	TY602/TY625	100-200	0.10-0.30
K	Gray Cast Iron	HB150-250	TY602	130-230	0.20-0.40
K	Ductile Cast Iron	HB150-250	TY602	120-220	0.10-0.30
