> Products > Turning > ISO Turning Inserts > Carbide/Cermet/Ceramic Inserts
TC230/GT301
A generation of M class cermet for steel finishing turning.
Features & Grades
Features

● A generation of cermet for steel finishing turning.

● Cermet grades with remarkable stable tool life due to incredible fracture resistance.

Grades
GT301
P
P10 – P20
Well-balanced between wear and chipping resistance for lignt interrupted
First choice for steel
M class coated cermet
Excellent surface quality in finishing

LEARN MORE
TC230
P
High wear resistance
Excellent performance in high-speed continuous cutting
M class cermet
Suitable for finishing to medium cutting of steel

LEARN MORE
Chipbreakers
Chipbreakers
Chipbreaker Features Application Cutting Edge
TQ

Sharp cutting performance with 3-D rake angle and double projection design.
PU

General purpose chipbreaker.

Excellent chip control at machining of low carbon steel.
PS

3-dimensional chipbreaker designed to have excellent chip control capability and low cutting force in finishing to medium cutting.Low cost,M-class positive insert used for high efficiency in a wide range of applications.
MM

Developed chipbreaker for medium cutting.

Excellent chip control due to wide,positive chip flow zone.

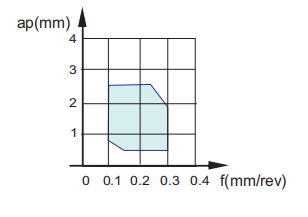

Standard Cutting Conditions
Standard Cutting Conditions

Negative inserts



ISO Operation Chipbreaker Grade ap(mm) f(mm/rev) Vc(m/min)
P Medium cutting PU TC230 0.5-3.0 0.15-0.35 100-250
TQ 0.5-2.0 0.10-0.20 100-250



Positive inserts



ISO Operation Chipbreaker Grade ap(mm) f(mm/rev) Vc(m/min)
P
 Finishing to
Medium cutting
 PS TP710 0.5-2.5 0.10-0.30 100-250
TP720 0.5-2.5
 0.10-0.30
MM
 TC230
 0.5-1.5
 0.05-0.20
 100-250
GT301
 0.5-1.5
 0.05-0.20



Practical cases
Practical cases

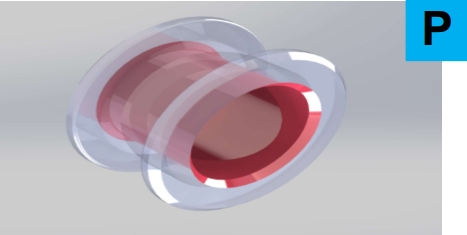

Workingpiece Type

Equipment Parts

Work Material

SPCH

Inserts

DCMTO70204-PS

Grade

TC230

Cutting Conditions

VC=225(m/min)

f=0.25(mm/rev)

ap=0.5(mm)

Cooling From: Wet
