> Products > Turning > ISO Turning Inserts > Carbide/Cermet/Ceramic Inserts
TN320
A generation of first choice for non-ferrous metal turning.
Features & Grades
Features

A generation of  first choice for non-ferrous metal turning.

Excellent wear resistance and excellent fracture resistance to further improve your machining efficiency.



Grades
TN320
N
N10– N20
High wear resistance
First supplement choice for non-ferrous metal
Excellent surface roughness

LEARN MORE
Chipbreakers
Chipbreakers
Chipbreaker Features Application Cutting Edge
AL

Extremely sharp cutting edge.

Polished surface.Excellent chip forming at high cutting feeds.Low power consumption.

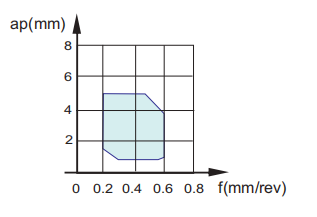

Standard Cutting Conditions
Positive inserts

ISO

Operation

Chipbreaker

Grade

ap(mm)

f(mm/rev)

Vc(m/min)

N

Finishing to
Medium cutting

AL

TN320

0.5-5.5

0.2-0.6

100-1000
Practical cases
Practical cases
Workingpiece Type: Pipe fitting
Work Material: A5052S
Inserts: DCGT070204-AL
Grade: TN320
Cutting Conditions: VC=400(m/min)
f=0.3(mm/rev)
ap=1(mm)
Cooling From: Wet
E-Catalog-Turning
E-Catalog-Turning
Click to enter E-Catalog Turning

LEARN MORE
