Home > E-Catalog > External Holders > For 35deg Rhombic insert > AVVNN Inch
> AVVNN16-3D
External Turning

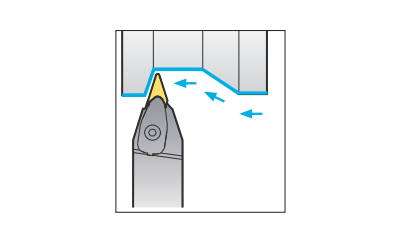

Main Application
Related Insert Related Tool
Product No.
Designation
H
W
L
S
h
l
Hand
Shim
Screw
Clamp
Clamping system
Spring
Clamp Screw
T2600018
AVVNN16-3D
25.4
25.4
152.4
12.7
25.4
47.498
N
EMV16
EAM4
EDV16
A
EDSP5
EDLS5
