Home > E-Catalog > Threading > Thread Insert > ER-55
> 22ERN55-TC-TG3225
Threading
Main Application
Related Tool
Product No.
Designation
Workpiece material
Pitch

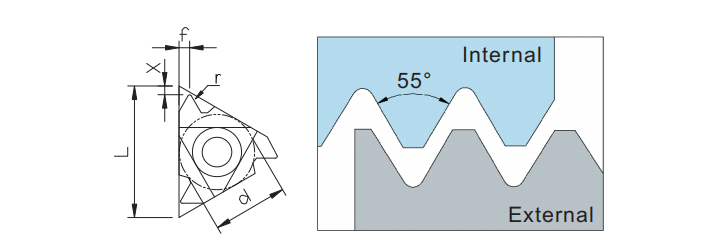

L
X
f
r
d
ER/IR
Thread form type
T1100742
22ERN55-TC-TG3225
P、M、K
7-5
22.0
1.7
2.5
0.44
12.7
ER
Partial profile 55°
